50mm Silicon Rock Cleanroom Panel

short description:

Model:BPA-CC-15

Low water absorption, moisture, air permeability, corrosion resistance, light texture, can effectively reduce the weight of the building; Good sealing performance, sound insulation performance is 5-8 times of the ordinary partition wall

Thermal conductivity: 0.028/m.k


Product Specification

Product Detail

Product Tags

Factory Show

Product Specifications

Production Display (1)
Production Display (3)
Production Display (2)
Production Display (4)

Name:

50mm Silicon Rock Panel

Model:

BPA-CC-15

Description:

  • ● color coated steel plate
  • ● silicon rock
  • ● color coated steel plate

Panel thickness:

50mm

standard modules: 980mm、1180mm non-standard can be customized

Plate material:

PE polyester, PVDF (fluorocarbon), salinized plate, antistatic

Plate thickness:

0.5mm、0.6mm

Fiber Core Material:

Silicon Rock

connection method :

Central aluminum connection, male and female socket connection


  • Previous:
  • Next:

  • Introducing our Handmade Sillicon rock panels.This product combines the durability and strength of pre-painted steel with the unique properties of sillicon rock for a versatile and high-quality core material.

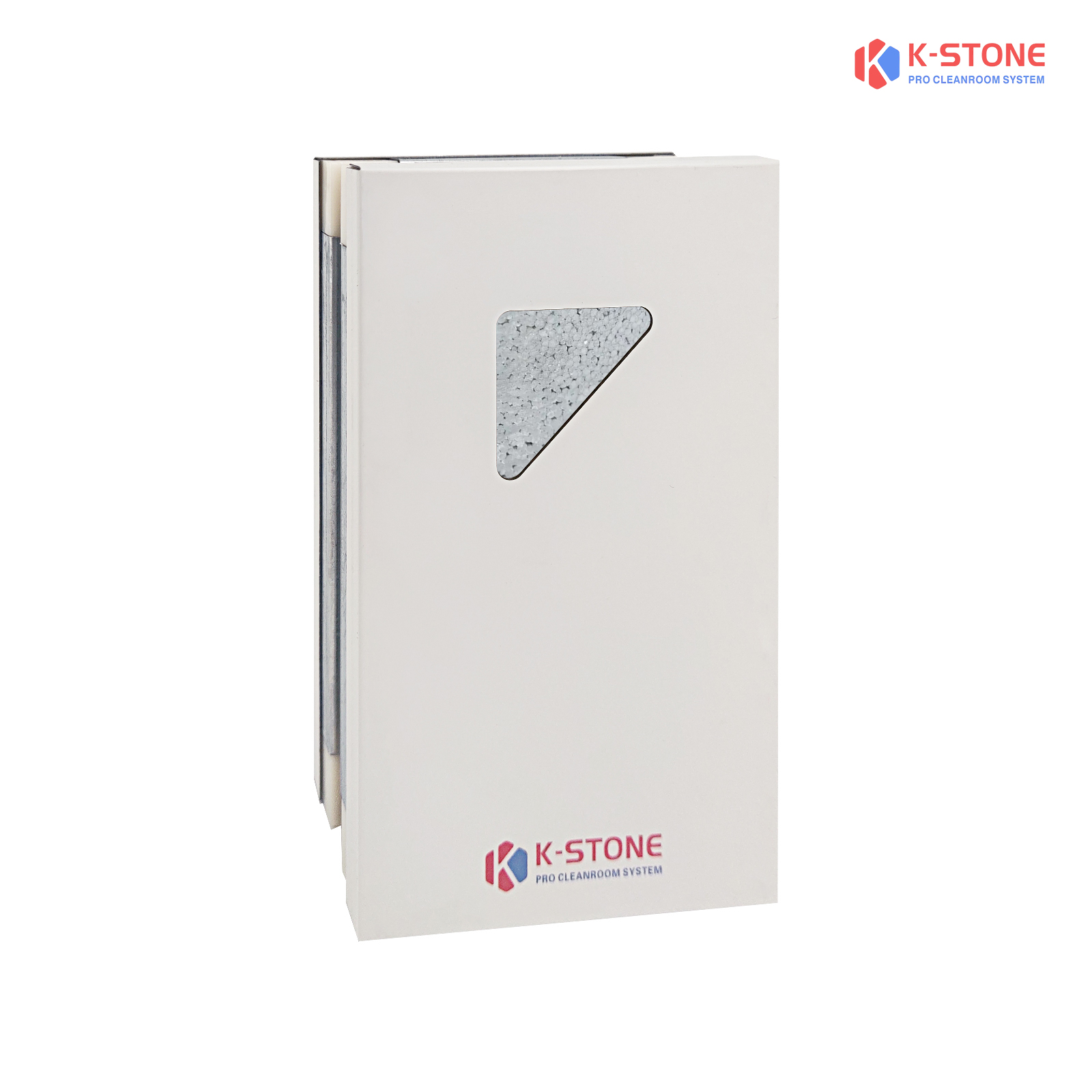

    Our handmade Sillicon rock panels consist of three layers.  The surface layer is made of high-quality color-coated steel plate, which has excellent corrosion resistance and wear resistance.  This layer ensures that our products are durable and able to withstand various environmental conditions.

    To enhance the structural integrity of the panels, we use galvanized steel strips for edge banding and stiffeners. This ensures that the sillicon rock core is securely contained within the board, preventing any deformation or breakage.

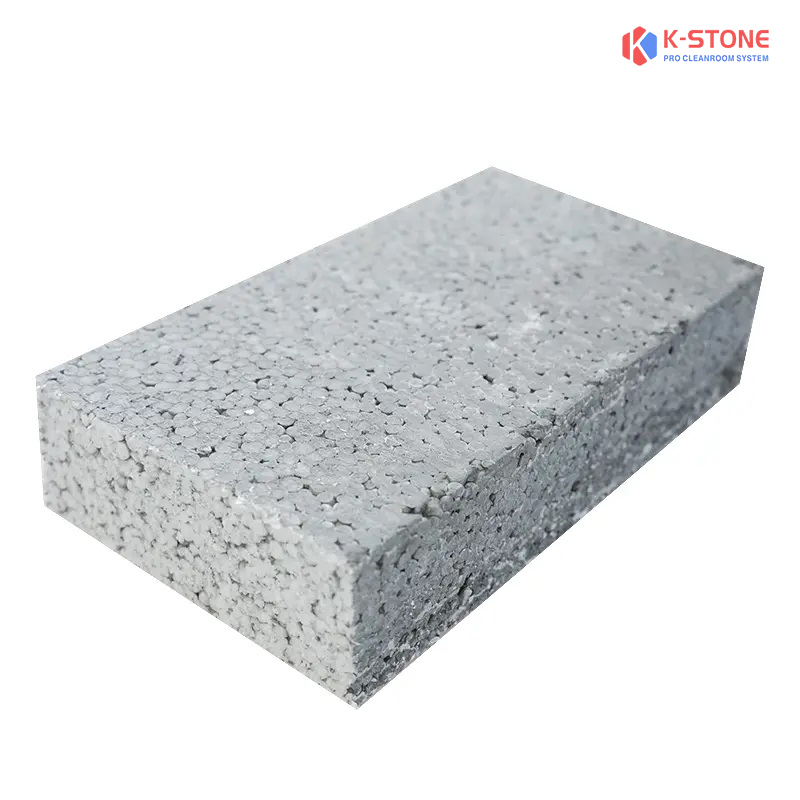

    The heart of our sillicon rock board lies in its core layer.We combine sillicon rock with inorganic materials such as silica and magnesium sulfide, as well as organic materials. This unique combination of materials gives our panels excellent thermal and insulating properties, making them ideal for insulating building facades.

    Besides, our sillicon rock plates are widely used in laboratories. Its heat resistance and chemical stability make it ideal for creating a controlled environment when conducting experiments or analyzing samples.

    By employing a special pressurized and heated manufacturing process, we ensure that each sillicon rock plate is of the highest quality.Our meticulous workmanship ensures that our products meet the most stringent standards, providing reliable, efficient solutions for a variety of applications.

    Our handcrafted silllicon rock panels offer the perfect combination of strength, durability, and unique thermal properties.   Whether you need building exterior insulation or a reliable material for your laboratory, our sillicon rock panels are the perfect choice. Trust our products to deliver superior performance and enhance your projects.
