50mm Double Gypsum & Aluminum Honeycomb Panel

short description:

Model:BPA-CC-14

▤AILV double gypsum and aluminum honeycomb panel selection connects the named layers with the facing and edge assembly. Review the section as a whole before coordinating it with other enclosure components.

Ask for best price

Product Specification

Product Detail

Product Tags

Factory Show

Product Specifications

AILV MATERIALS / HANDMADE PANELS

Gypsum Layers with an Aluminum Honeycomb Core

50mm Panel • BPA-CC-14

The named panel assembly places gypsum layers on both sides of an aluminum honeycomb core, between color-coated steel facings. AILV selection brings the layer arrangement, facing options and perimeter connection into one enclosure specification.

Review the original technical values below alongside the wall or ceiling layout. Include the required module dimensions, facing choice, openings and connection details when preparing a material schedule.

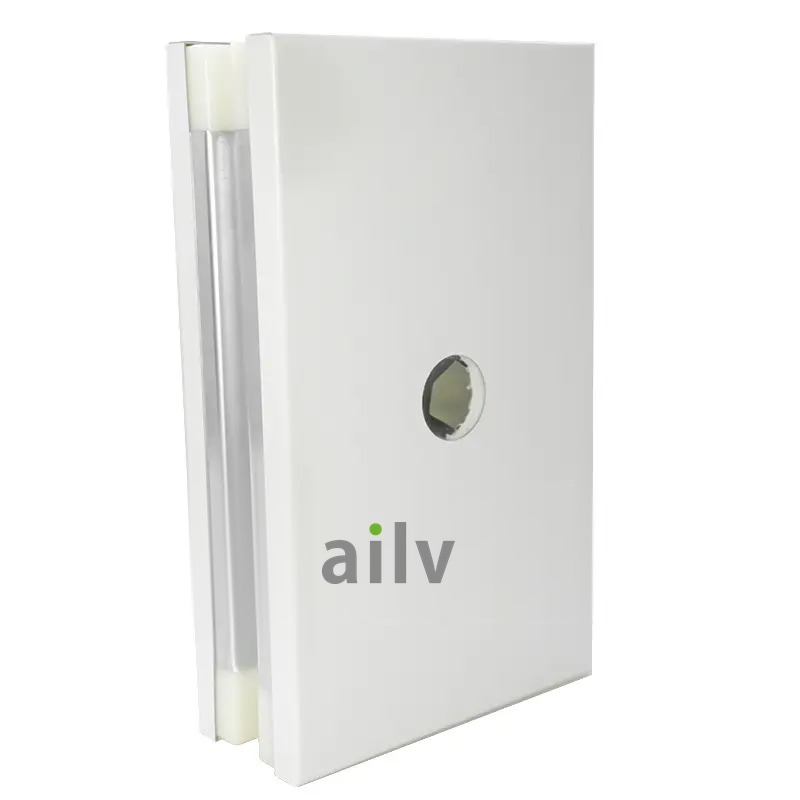

AILV double gypsum and aluminum honeycomb panel sample shown upright — Upright product sample; original geometry retained.

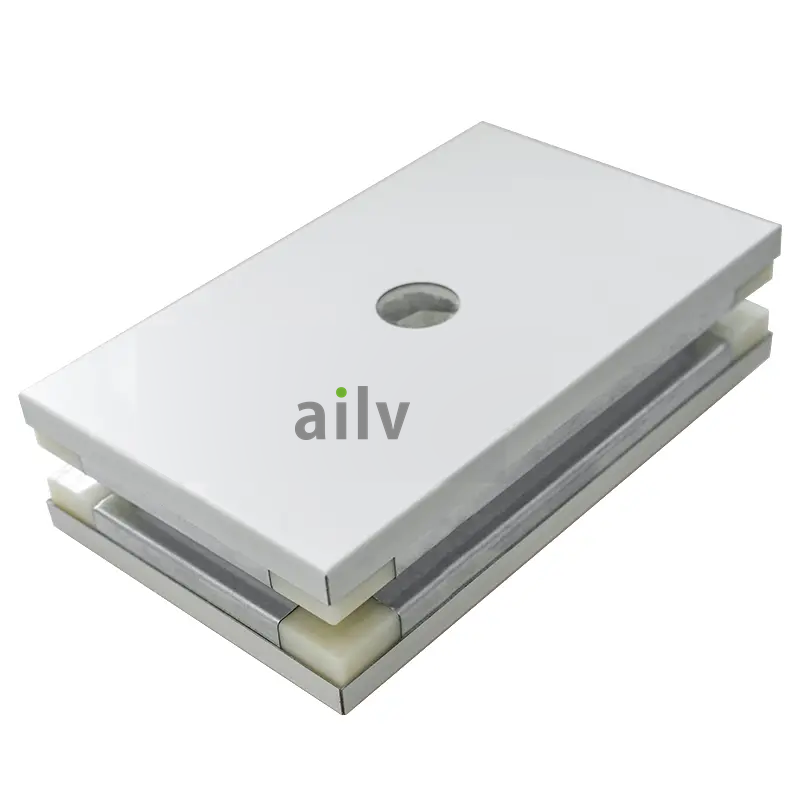

AILV panel sample viewed along the edge and layered assembly — Edge view of the same panel sample.

Technical Specification

Name:	50mm Double Gypsum&Aluminum Honeycomb Panel
Model:	BPA-CC-14
Description:	● color coated steel plate ● gypsum ● aluminum Honeycomb ● gypsum ● color coated steel plate
Panel thickness:	50mm
standard modules:	980mm、1180mm non-standard can be customized
Plate material:	PE polyester, PVDF (fluorocarbon), salinized plate, antistatic
Plate thickness:	0.5mm、0.6mm
Fiber Core Material:	Aluminum honeycomb (aperture 21mm）+ double layer 9.5mm gypsum board
connection method :	Central aluminum connection, male and female socket connection

Coordinate the Material Schedule

01Panel dimensions, layout positions and quantities.

02Steel facing choice and adjoining edge connections.

03Door, window and service openings shown on drawings.

Previous: Dispensing Booth-Weighing Booth & Sampling

Next: 50mm Single Magnesium & Rockwool Panel

AILV / PANEL

Double-gypsum aluminum-honeycomb panels combine gypsum layers with a cellular aluminum core. The layers, faces and perimeter form the named composite panel section.

▤

Gypsum Layers with Aluminum Honeycomb

▥

Construction and configuration

The construction should identify the gypsum sheets separately from the aluminum cells. The edge and connecting profile describe the outside boundary of the assembly.

Enclosure Interfaces

▣

Use of the selected item

Review supports, joints and openings against the actual layer sequence. The selected drawings and product information need to refer to this gypsum-and-aluminum construction.
