Product Specifications
AILV / Cleanroom Panels
Openings and edge closure are central to an AILV double magnesium and paper honeycomb panel layout. Keep the complete layered section linked to the panel reference throughout the room schedule.
Draw the panel around room openings
Locate doors, windows and service penetrations before finalising the panel quantities. Review the boundary at each cut with the selected facing, paper honeycomb core and magnesium layer arrangement shown on the current section drawing.
Coordinate the joint and finish
Use that section to compare perimeter trims, panel joints and adjacent frame connections. The material list should retain the original construction and dimensions while identifying the items required to complete the planned enclosure.
|
Name: |
50mm Double Magnesium&Paper Honeycomb Panel |
|
Model: |
BPA-CC-12 |
|
Description: |
|
|
Panel thickness: |
50mm |
| standard modules: | 980mm、1180mm non-standard can be customized |
|
Plate material: |
PE polyester, PVDF (fluorocarbon), salinized plate, antistatic |
|
Plate thickness: |
0.5mm、0.6mm |
|
Fiber Core Material: |
Paper honeycomb (aperture 21mm)+double layer 5mm magnesium board |
|
connection method : |
Central aluminum connection, male and female socket connection |
AILV / PANEL

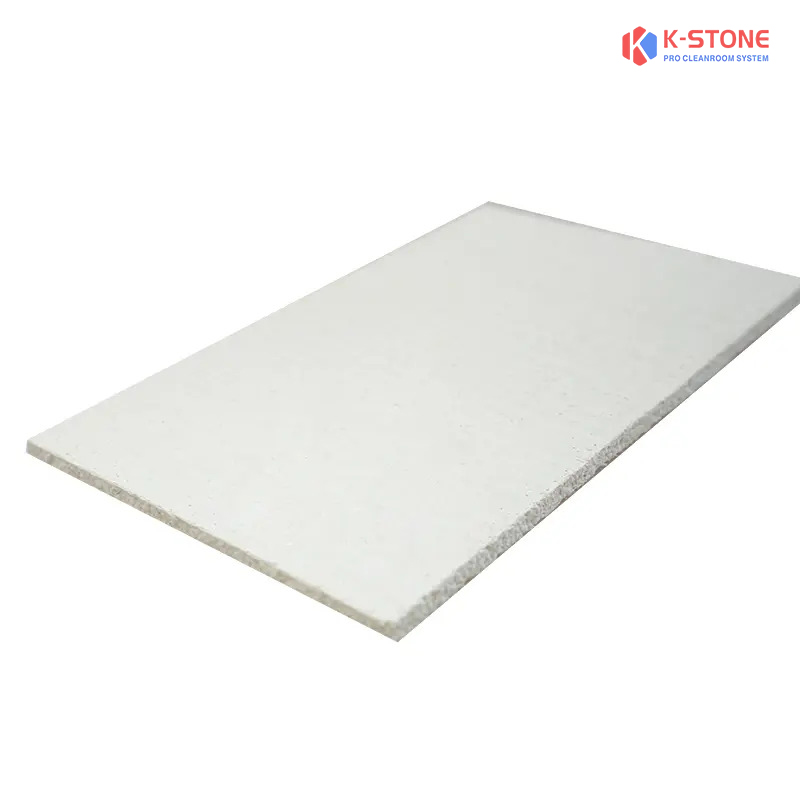

Double-magnesium paper-honeycomb panels use two magnesium layers around the specified paper-core construction. The complete layer build-up is the relevant enclosure component.
Double Layers and Paper-Core Closure
Construction and configuration

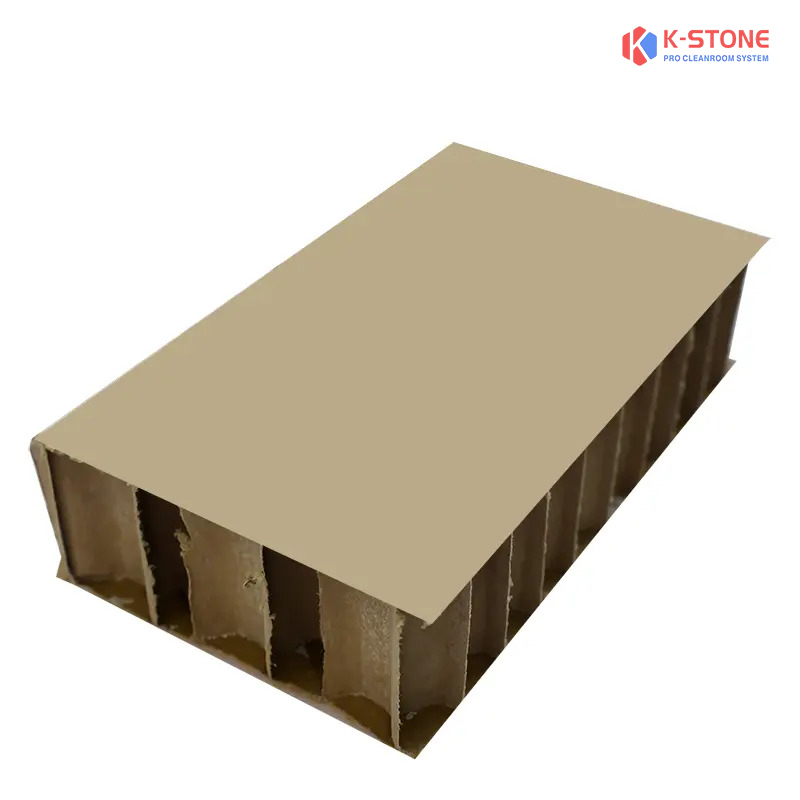

The section describes the paper cells, magnesium layers, faces and edges. Their positions must remain connected to the selected perimeter and opening details.
Enclosure Interfaces
Use of the selected item
An opening interrupts the layer build-up and needs a matching closure. Review the room conditions and connection arrangement against this specific composite section.
