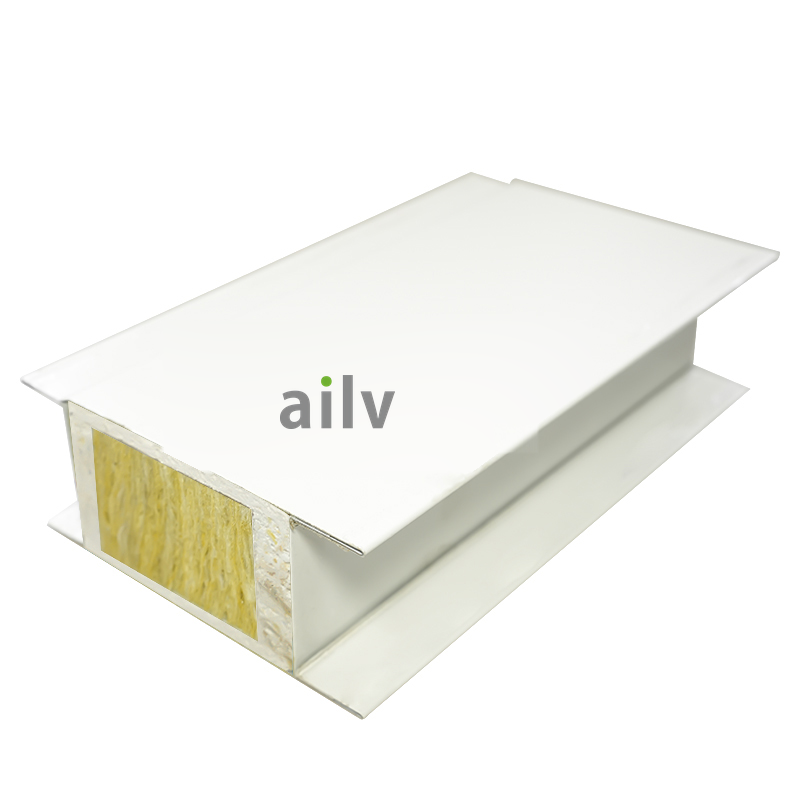

50mm Double Magnesium &Rockwool Panel

Model: BMA-CC-05 BMB-CC-02

▤ Prepare double magnesium and rockwool panel runs with model references, joint drawings, full-module quantities and separately listed end pieces.

Product Specification

AILV MATERIALS

Prepare double magnesium and rockwool panel runs with module references, selected joining details and separately counted perimeter pieces.

Number panels along each run and attach the selected joint drawing to those line items.

List end panels and corner trims separately from complete repeated modules.

Match each quantity line to its model code rather than replacing it with a similar panel name.

Name:	50mm Double Magnesium&Rockwool Panel	75mm Double Magnesium&Rockwool Panel
Model:	BMA-CC-05	BMB-CC-02
Description:	● color coated steel plate ● magnesium oxide board ● rock wool+magnesium oxide strip ● magnesium oxide board ● color coated steel plate	● color coated steel plate ● magnesium oxide board ● rock wool+magnesium oxide strip ● magnesium oxide board ● color coated steel plate
Panel thickness:	50mm	75mm
standard modules:	950mm、1150mm	950mm、1150mm
Plate material:	PE polyester, PVDF (fluorocarbon), salinized plate, antistatic	PE polyester, PVDF (fluorocarbon), salinized plate, antistatic
Plate thickness:	0.5mm、0.6mm	0.5mm、0.6mm
Filled core material:	Double Magnesium + Rockwool(bulk density 100K)+magnesium strip	Double Magnesium + Rockwool(bulk density 100K)+magnesium strip
Connection method :	Tongue-and-groove board	Tongue-and-groove board
